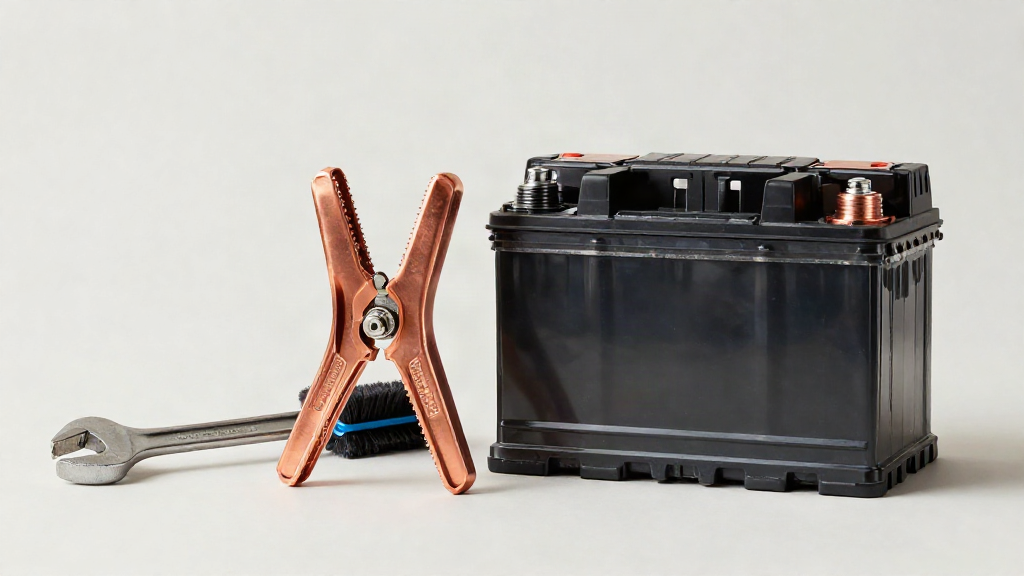

How to Fit Copper Battery Terminal Clamps the Right Way (6V and 12V)

Copper battery terminal clamps look simple, but a loose or corroded connection can leave you with a car that cranks slowly, an RV that won't start, or accessories that cut in and out without warning. The fix is usually not a new battery at all - it's a clean, tight clamp fitted the right way.

This guide walks you through fitting replacement copper clamps on both 6V and 12V systems, from safety prep to the final torque check. You'll also learn how to prevent the corrosion that ruins most terminals in the first place, and how to choose the right connector set for cars, trucks, and RVs.

Why copper clamps outperform the cheap alternative

Battery terminals carry high current, so resistance is the enemy. Copper conducts electricity far better than the lead or zinc alloys used on budget clamps, which means less voltage drop between the battery and your starter. In practice, that shows up as faster cranking, brighter lights, and fewer "mystery" electrical faults.

Copper clamps are also more resistant to the corrosion that builds up around battery posts. That matters on 12V systems in cold climates, where every bit of lost conductivity makes a cold morning start harder than it needs to be.

Before you start: safety and tools

Batteries store energy even when the engine is off, so treat this job with respect.

• Work in a ventilated area. Batteries can vent hydrogen gas, which is flammable.
• Wear safety glasses and gloves. Battery acid and metal shavings are both hazards.
• Remove metal jewelry. A dropped ring or watch band across a terminal can arc.
• Disconnect negative first. Always remove the negative (black) cable before the positive (red), and reconnect positive first when you're done. This order prevents accidental shorts.
• Gather your tools: a socket or wrench set, a wire brush or terminal cleaning tool, sandpaper, a small amount of dielectric grease or petroleum jelly, and your replacement copper clamps.

Step 1: Disconnect and inspect the old connection

Loosen the negative terminal nut and lift the cable away, then repeat for the positive side. Set the cables aside where they can't touch either post.

Now look at the posts and the cable ends. White, green, or powdery blue buildup is corrosion. Heavy pitting or a swollen, cracked clamp means it's time for replacement - which is exactly what copper clamps solve.

Step 2: Clean the battery posts and cable ends

Corrosion is the number-one cause of a poor connection, so don't skip this.

1. Brush the battery posts until they're bright and shiny using a wire brush or a dedicated terminal cleaning tool.
2. Clean the inside of the new copper clamps and the bare cable ends with sandpaper until they're free of tarnish.
3. Wipe everything down with a dry cloth.

A clean, bright surface is what allows the clamp to bite and conduct properly. Fitting new clamps over corroded posts just hides the problem.

Step 3: Attach the clamp to the cable

Slide the stripped cable end into the clamp's cable saddle. Tighten the cable-retention bolt firmly so the copper grips the strands securely - a loose cable end is a hidden high-resistance point that will heat up under load.

For best results, match the clamp size to your cable gauge. Oversized clamps on thin cables may not clamp down tightly enough even when fully tightened.

Step 4: Fit the clamp to the battery post

Seat the clamp over the post, positive (red) on positive and negative (black) on negative, then tighten the terminal bolt. It should be snug enough that you cannot twist the clamp by hand, but not so tight that you deform the post or strip the threads.

Test it: give the cable a gentle tug. Any movement means it needs more tightening.

Step 5: Apply protection and reconnect

Smear a thin layer of dielectric grease or petroleum jelly over the assembled connection. This seals out moisture and acid vapor, which is what causes that powdery corrosion to return.

Then reconnect in reverse order: positive cable first, negative last. Give each clamp a final check that it's tight and fully seated.

Handling 6V and 12V systems

The fitting process is identical for 6V and 12V setups - the difference is in what you connect and how much current flows.

• 6V systems are common on classic cars, vintage tractors, and some golf carts. They carry higher current for the same power, so clean, tight copper connections matter even more.
• 12V systems cover most modern cars, trucks, and RVs. If you run a dual-battery or auxiliary setup, fit each connection individually and check both.

A clamp rated for both positive and negative 6V and 12V posts gives you one part that works across your whole fleet or workshop.

Preventing corrosion for the long term

Even quality copper clamps benefit from a little upkeep:

• Recheck terminal tightness every few months, especially before winter.
• Refresh the protective grease coating after any cleaning.
• Fix acid leaks at the source - a cracked battery case or overfilled cells will keep corroding terminals until addressed.
• Keep the top of the battery clean; a damp, dusty surface helps corrosion travel.

Choosing the right copper clamp set

If you're replacing clamps across several vehicles, a multi-pack pays off. A set that includes pairs for both positive and negative posts lets you service a car, a truck, and an RV without ordering separately. Look for:

• Genuine copper construction for conductivity and corrosion resistance.
• Compatibility with both 6V and 12V posts.
• Corrosion-resistant plating on the hardware so the bolts don't seize.
• Pack sizing that matches how many vehicles you maintain.

Quick troubleshooting checklist

If a freshly fitted clamp still gives you trouble:

• Is the cable end tight inside the clamp, or is it loose?
• Are the battery posts actually clean and bright, not just wiped?
• Did you tighten the terminal bolt enough to stop twisting?
• Is the problem on the negative side too? A bad ground causes the same symptoms as a bad positive.

The takeaway

Fitting copper battery terminal clamps is a 20-minute job that prevents a long list of electrical headaches. Disconnect negative first, clean every surface until it's bright, tighten until the clamp won't twist, seal it with grease, and reconnect positive first. Do that, and your 6V or 12V connection will start strong and stay reliable for far longer than the cheap clamps it replaced.
